SKU: 2026 Categories: Spray Guns, Spray Guns & Equipment Tag: Bulldog Auto

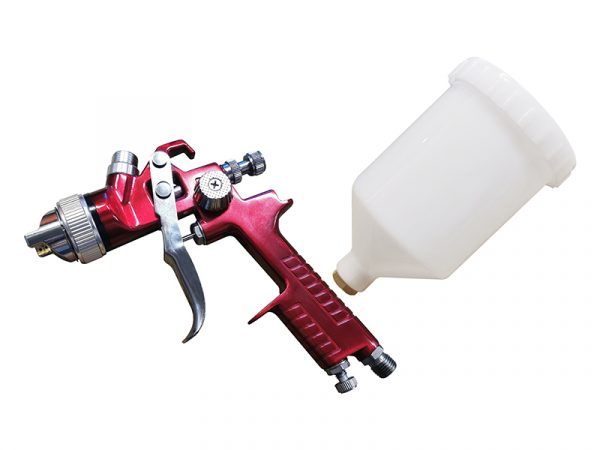

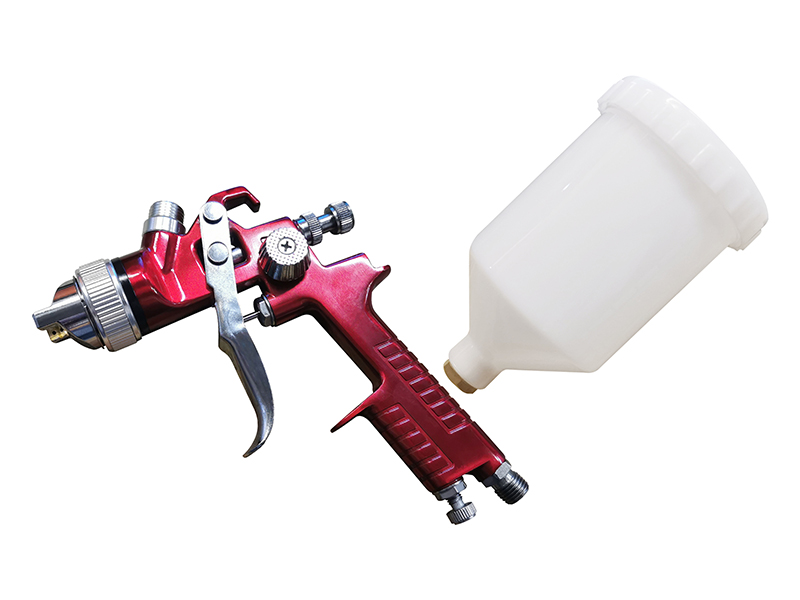

H-827P HVLP SPRAY GUN

Name: H-827P HVLP SPRAY GUN
SKU: 2026

Description

The H-827 Spray Gun is easy to use and ideal for most automotive painting, furniture painting, and equipment painting. It may be used with lacquers, basecoat/clearcoat systems, and polyurethane/urethane topcoats. The 600ml gravity feed design assists with easy cleanup and minimises the waste of material left in the canister. The gun’s polished aluminium housing also allows for easy cleanup.

Size

Clear

Add to quote

Part No	Description	Min Qty
H827P/1.4	H-827P HVLP Spray Gun, 1.4mm Nozzle	1
H827P/1.7	H-827P HVLP Spray Gun, 1.7mm Nozzle	1
H827P/2.0	H-827P HVLP Spray Gun, 2.0mm Nozzle	1

Technical Data
Fluid Nozzle:	1.4mm/1.7mm/2.0mm
Air Pressure:
1.4mm	45PSI (3.10bar)
1.7mm:	50 PSI (3.45 bar)
2.0mm:	50 PSI (3.45 bar)
Air consumption:
1.4mm:	7.5 CFM (212.38 l/min)
1.7mm:	8.8 CFM (249.19 l/min)
2.0mm:	10 CFM (283.17 l/min)
Pattern width of fan-shape:
1.4mm:	160mm
1.7mm:	190mm
2.0mm:	220mm
Air inlet:	G 1/4"
Capacity of Cup:	600ml
Feed Type:	Gravity Feed
