SKU: 2718 Categories: , Tag:

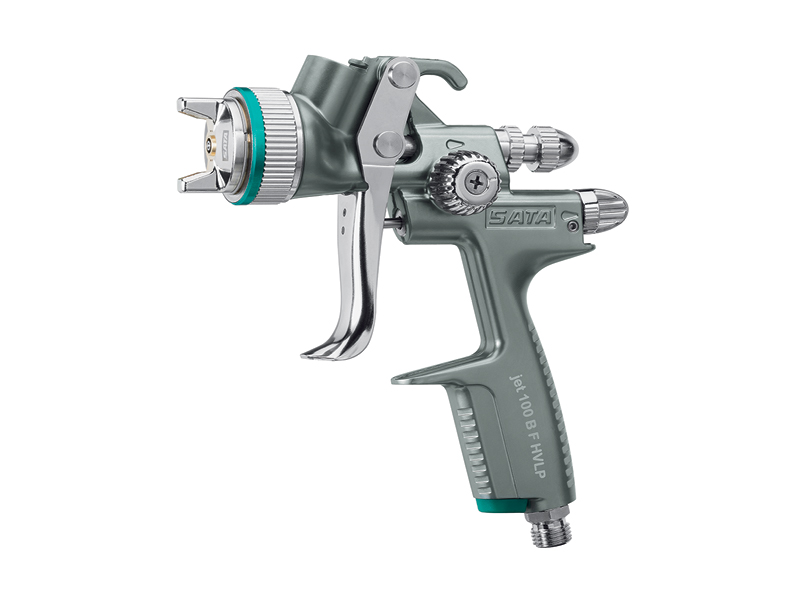

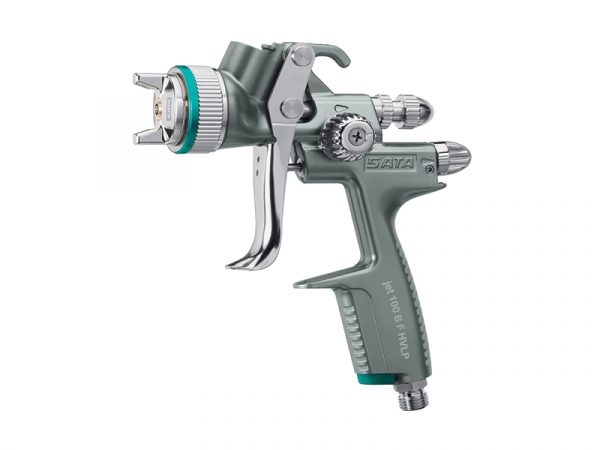

SATAJET® 100 B F™ HVLP SPRAY GUN, 0.6LTR REUSABLE PLASTIC CUP, WITHOUT SWIVEL JOINT

SATA
Description

The SATAjet 100 B is thrifty, low maintenance and economical. It can be used for a wide range of applications due to its extreme flexibility in setting the atomization pressure.

Due to the wide spray fan and fine atomisation, fillers and primers can be applied in a continuous flow despite the higher material viscosity. This saves valuable working time due to less grinding effort.

Product Benefits

  • RP® and HVLP – Ideal for Primer and Filler Application
  • Efficient primer and filler application with minimal overspray, conserving paint material and reducing the need for extensive masking. Even paint distribution results in reduced post-application sanding. With a standardized inlet pressure of 0.5 bar, the spray fan can be finely and flexibly adjusted, even for small spot repair areas.
  • Durable spray gun featuring an anodized spray gun body.
  • Comes complete with round/flat fan control, material flow control, and an air micrometer.
  • Lightweight and ergonomically optimized for comfortable use.
  • Requires minimal cleaning and maintenance.
  • Versatile usability thanks to four different RP and HVLP nozzle sizes.
TECHNICAL SPECIFICATIONS
Air consumption: 350,0 Nl/min
Max. inlet air pressure: 10,0 bar
Packaging unit: 1,0 Pieces
Net weight: 0.092 – 1.197kg
Recommended dynamic inlet pressure: 2,0 bar
Recommended spraying distance: 10 – 15cm
Cup connection type: QCC

* All information without guarantee – errors and changes reserved.
** All data refer to the entire product range and not to individual variants.



SATAjet® 100 B F™ HVLP SPRAY GUN, 0.6LTR REUSABLE PLASTIC CUP, WITHOUT SWIVEL JOINT
Part No. Description Min Qty
146373 SATAjet® 100 B F™ HVLP Spray Gun, without swivel joint, 1.4 Nozzle 1
145722 SATAjet® 100 B F™ HVLP Spray Gun, without swivel joint, 1.7 Nozzle 1
145730 SATAjet® 100 B F™ HVLP Spray Gun, without swivel joint, 1.9 Nozzle 1
145748 SATAjet® 100 B F™ HVLP Spray Gun, without swivel joint, 2.1 Nozzle 1
