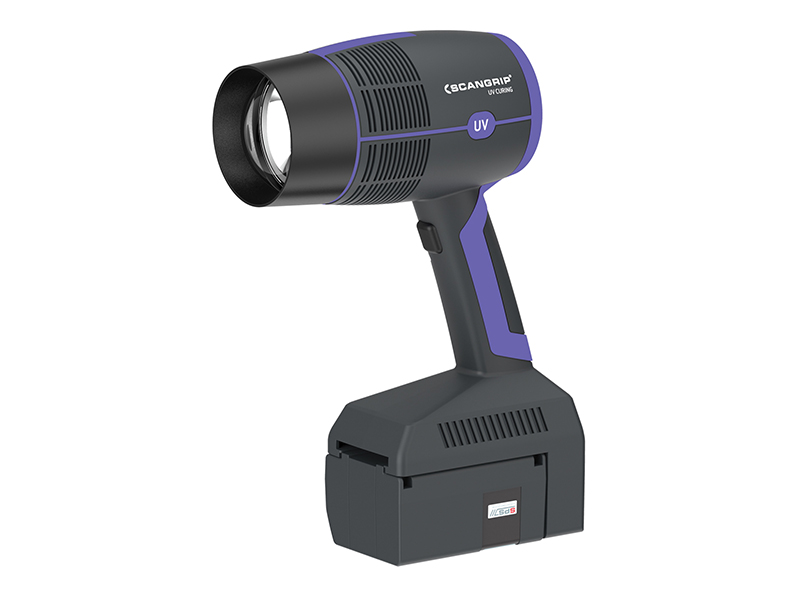

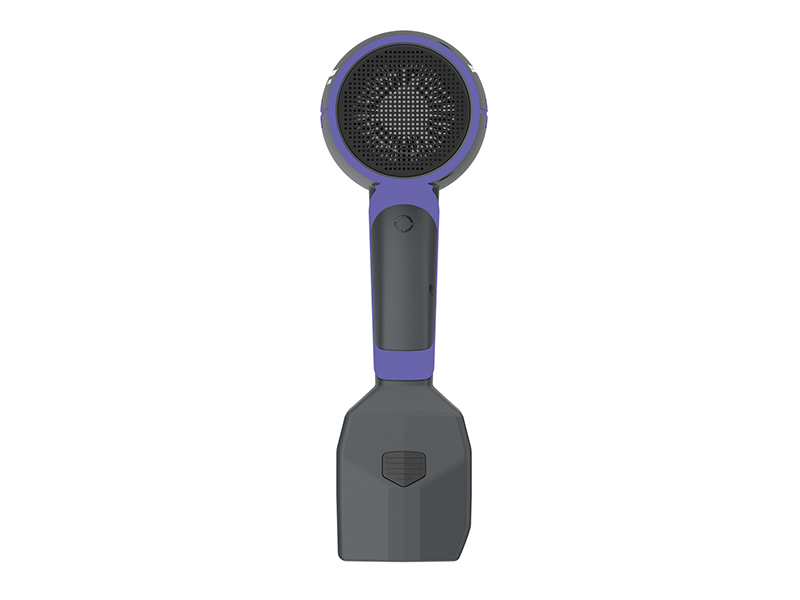

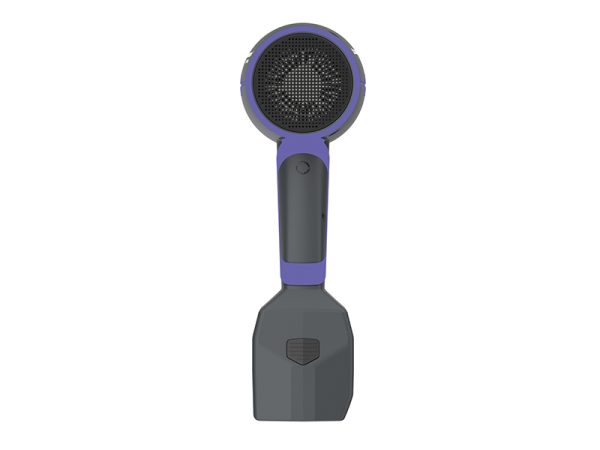

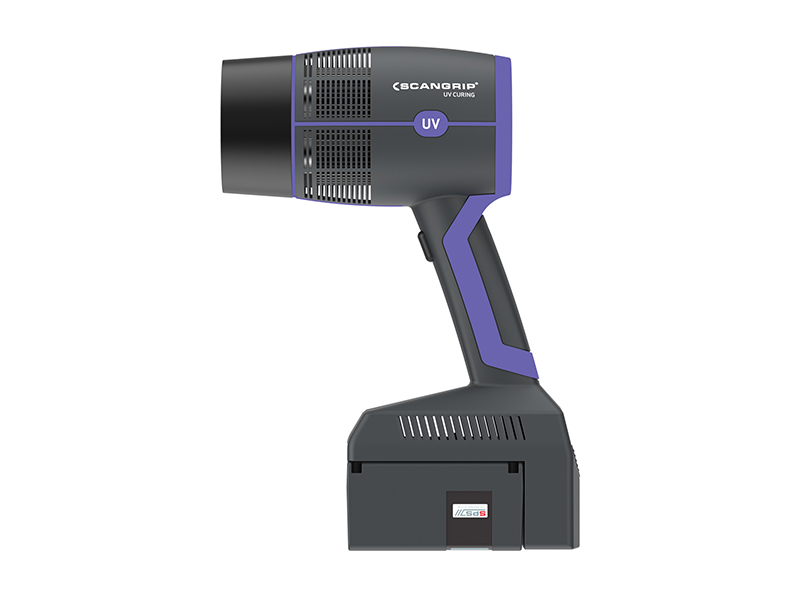

UV-Gun: Led Light For UV Curing

Scangrip
Description

UV-GUN is an extremely powerful LED UV curing lamp for highly efficient and very fast curing of large paint repair areas. It provides a long operation time and is rechargeable with an exchangeable battery.

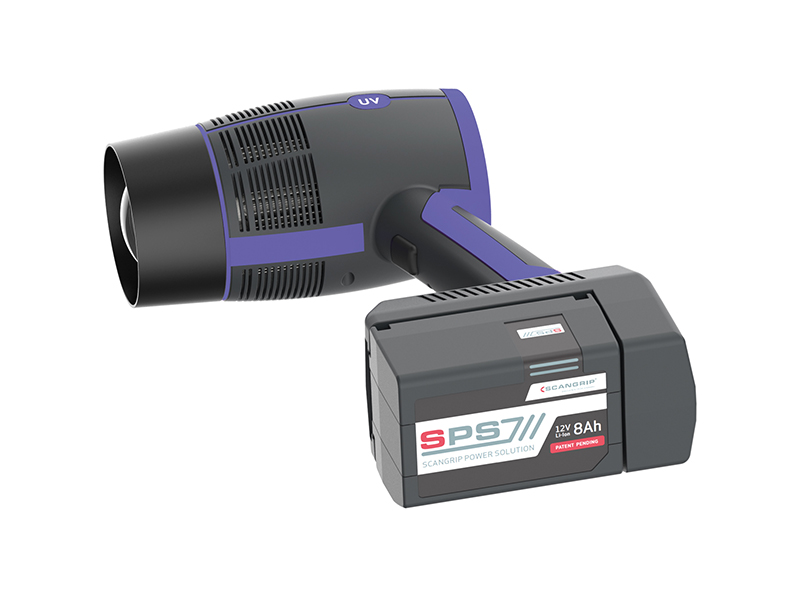

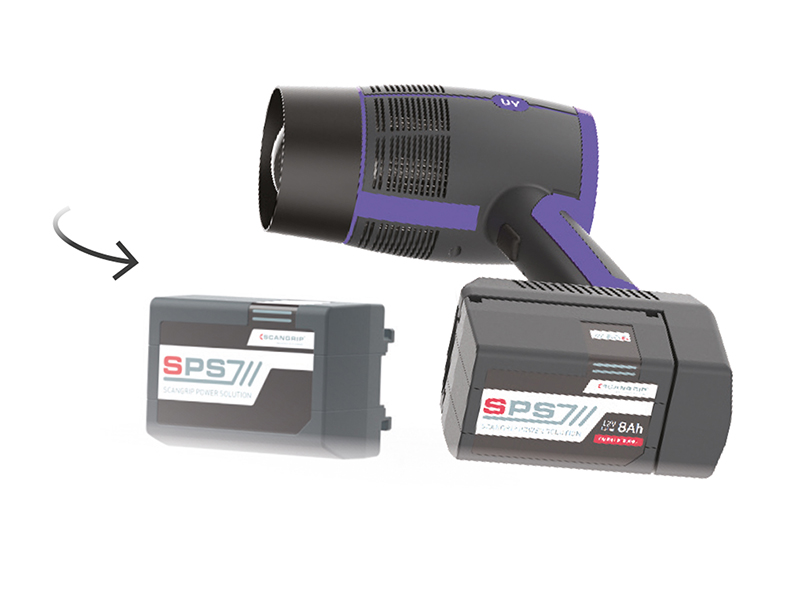

SCANGRIP has taken advantage of new, high-performance battery technologies and invented an innovative concept of flexible and reliable power supply. Easily you can insert a new, fully charged battery and continue the work while another battery is charging.

Featuring high-quality components and active cooling, UV-GUN has a long life and keeps a high-performance level throughout daily operations. No heat is produced on the panel or the paint during the curing, allowing the use on plastic parts or any heat-sensitive material.

UV-GUN has been upgraded with an LCD display enabling you to see the remaining battery level and ongoing curing time. With this feature, you will know the exact curing time of each operation and see when it is time to exchange the battery.

TECHNICAL SPECIFICATIONS
UV LED
Irradiance at 10cm, Minimum >68mW/cm2, Centre 340mW/cm2
Irradiance at 56cm, Minimum >6mW/cm2, Centre 14mW/cm2
UV peak wavelength 395-400 nm
Curing area: 250cm2 at 10cm distance / 3600cm2 at 56cm distance
11.1V / 8000 mAh Li-ion
40 min. operation time
2 hours charging time @80%
IP30
IK06
1.89 kg incl. battery
Incl. SPS BATTERY 03.6004 and SPS CHARGING SYSTEM 50W 03.6007
Part No Description Min Qty
03.5803 UV-Gun: Led Light for UV Curing of Large-sized Paint Repair Areas 1
