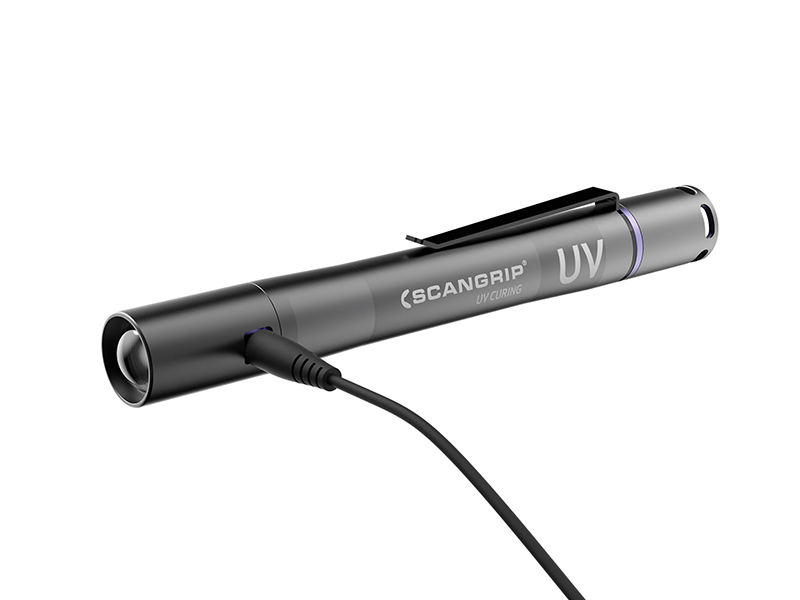

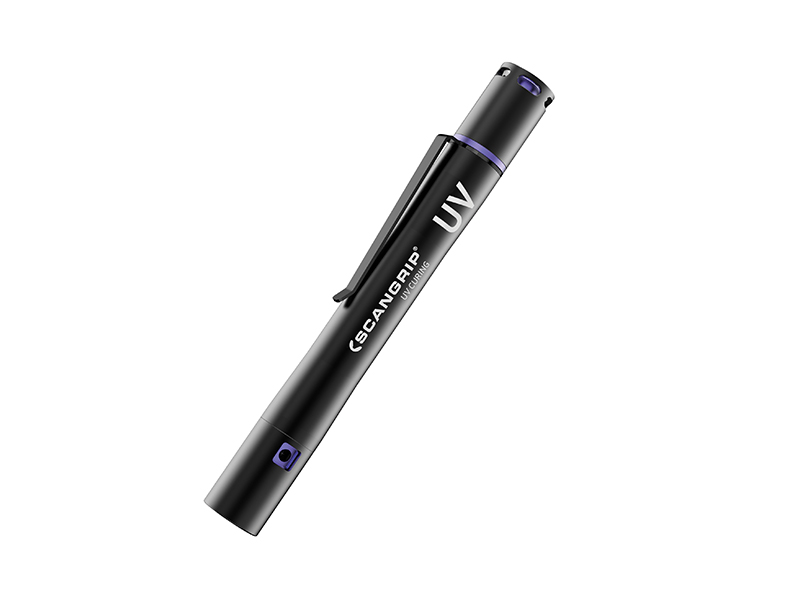

UV-PEN is a rechargeable LED UV flashlight designed for spot repair and fast curing of car door edges and other narrow areas.
The housing of the compact high-quality UV curing light is made from durable aluminium providing an ergonomic grip for a firm hold.
With the built-in clip for the chest pocket, the flashlight is easy to carry around and always near at hand.
No heat is produced on the panel or the paint during the curing, allowing the curing of plastic parts or any heat-sensitive material.
UV-PEN is supplied with a solvent-resistant, exchangeable glass lens and the lamp can easily be charged with the enclosed USB cable.
| TECHNICAL SPECIFICATIONS |
|---|
| UV LED |
| Irradiance at 3cm, Minimum 12mW/cm2, Centre 25mW/cm2 |
| UV peak wavelength 390-400 nm |
| Curing area ø5cm |
| 3.7V 1100 mAh Li-ion |
| 1 hour operation time |
| 4 hours charging time |
| IP30 |
| 88g |
| Part No | Description | Min Qty |
|---|---|---|
| 03.5800 | UV-Pen: Rechargeable LED Flashlight for Spot Repair and Curing | 1 |
